Torque screwdriver set TorqueVario®-S ESD

Controlled fastening of electrical components.

0,4-1,0 Nm assorted, variably adjustable torque limit, 14-pcs. incl. box

Export PDF

Add to bookmarks

Remove from bookmarks

Order number	EAN							Netto
43898	4010995438982						711	€

Torque range min - max (Nm)

Handle diameter (mm)

Tolerance (%)

Hexagon head (mm)

Handle length (mm)

Weight PU in grams

Series 2882

Size specifications are always given in mm

Highlights

Variably adjustable torque from 0.4 - 1.0 Nm

Acoustic and physically perceptible triggering signal protects against damage to materials and rework

ESD - Electrostatic discharging – protects electronic components

Ergonomic working – Recommended by doctors and therapists of the German Campaign for Healthier Backs

With handle, 10 bits, bit holder, and adjusting tool in a convenient and sturdy metal box

Product Description

Product description

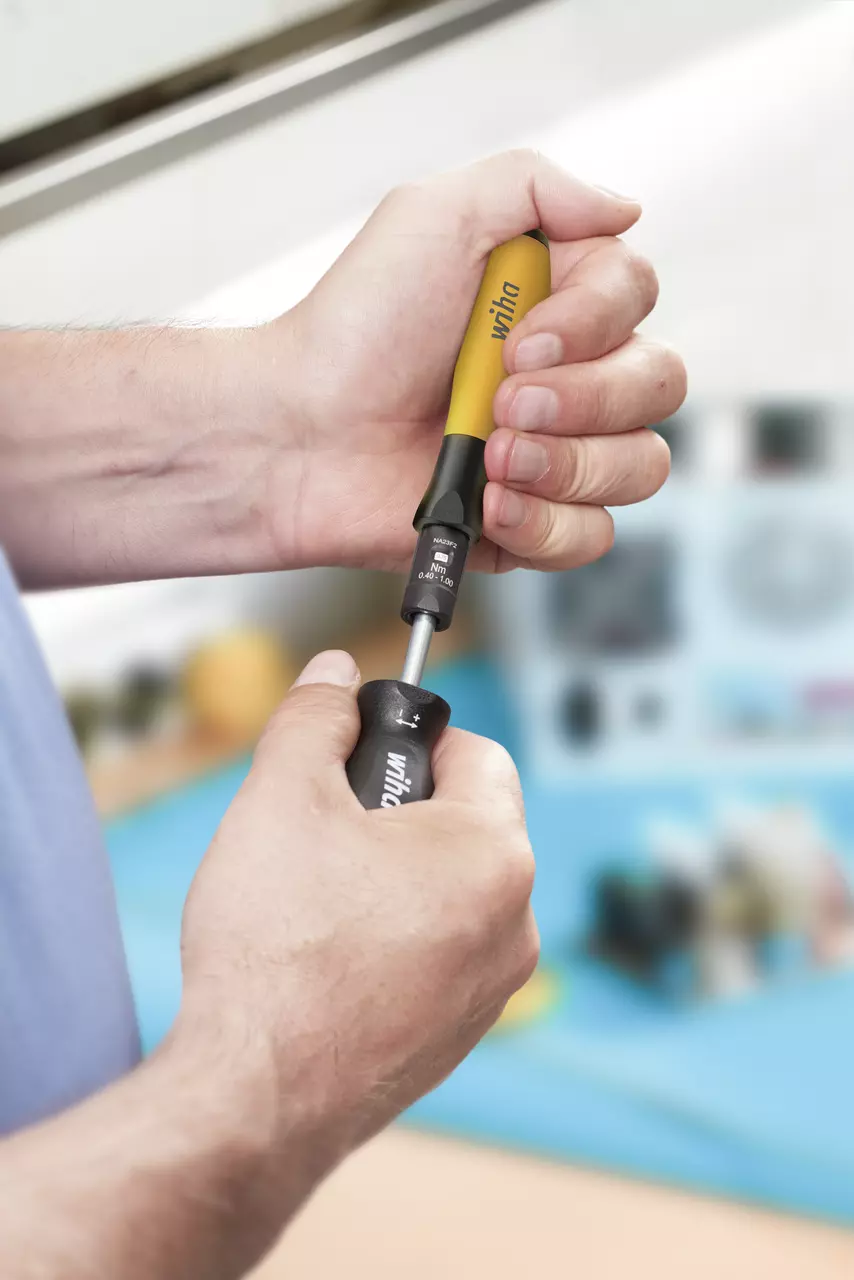

Users risk damaging electronic components irreparably by electrostatic discharge when working on them. Such problems become a thing of the past with the TorqueVario®-S ESD torque screwdriver set. The ESD torque screwdriver is manufactured in line with the IEC 61340-5-1 international standard and thus guarantees maximum protection for electronic components. The dissipative tool handle has a surface resistance between 10⁶ - 10⁹ ohm and safely channels electrostatic energy away in a controlled fashion. The torque screwdriver also ensures controlled screw tightening. Thanks to its integrated numeric scale and the supplied adjusting tool, variable torque settings can be made, therefore covering a wide application field. A clearly audible and tactile signal is emitted when triggering the set torque value, guaranteeing process-safe work, protecting material and eliminating follow-up work. With a release accuracy of +/- 6%, the torque tool complies with EN ISO 6789 requirements. The set includes a bit holder for 1/4" bits. All tools in the set are safely and neatly stored in a sturdy, clearly organized metal box, including the manufacturer's inspection process report.

Product dimensions

233 x 125 x 39 mm (LxWxD)

Standards

DIN EN ISO 6789.

Standard text

Wiha Werkzeuge GmbH is certified according to ISO 9001:2015, ISO 14001:2015 and ISO 50001:2018 and confirms that its products comply with internal regulations, operating instructions as well as applicable norms, standards and legal requirements and are subject to continuous process monitoring. The product complies with the requirements of Regulation (EU) 2017/821 on conflict minerals as well as the OECD Due Diligence Guidance, the General Product Safety Regulation (GPSR), Regulation (EC) No 1907/2008 (REACH), whereby the latest SVHC Candidate List is regularly reviewed and requirements are implemented, Directive 2011/65/EU (RoHS) including amendment (EU) 2015/863 as well as Regulation (EU) 2019/1021 on persistent organic pollutants (POP).

Application

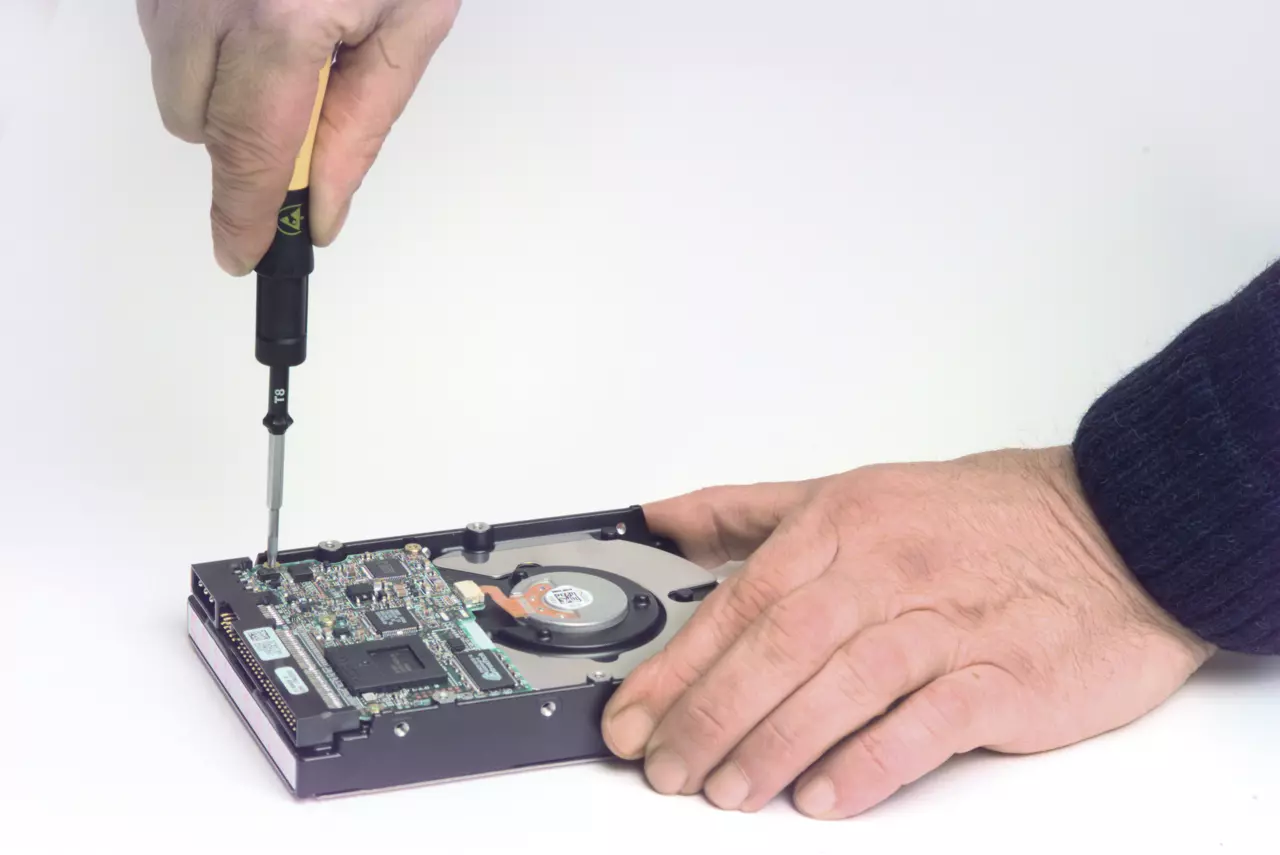

For controlled fastening at a specific torque on components susceptible to electrostatic discharge.
