Electric reversible ratchet set 1/2"

20 pcs. with push button and detent retaining ball incl. bag

Export PDF

Add to bookmarks

Remove from bookmarks

Order number	EAN
43024	4010995430245	4220

Weight PU in grams

Series 7208N

Size specifications are always given in mm

Highlights

Quick start with a safe distance for the first turns thanks to the rotary knob

Powerful tightening thanks to non-slip, ergonomic handle

Perfect for confined spaces thanks to the fine toothing of the ratchet

Product Description

Product description

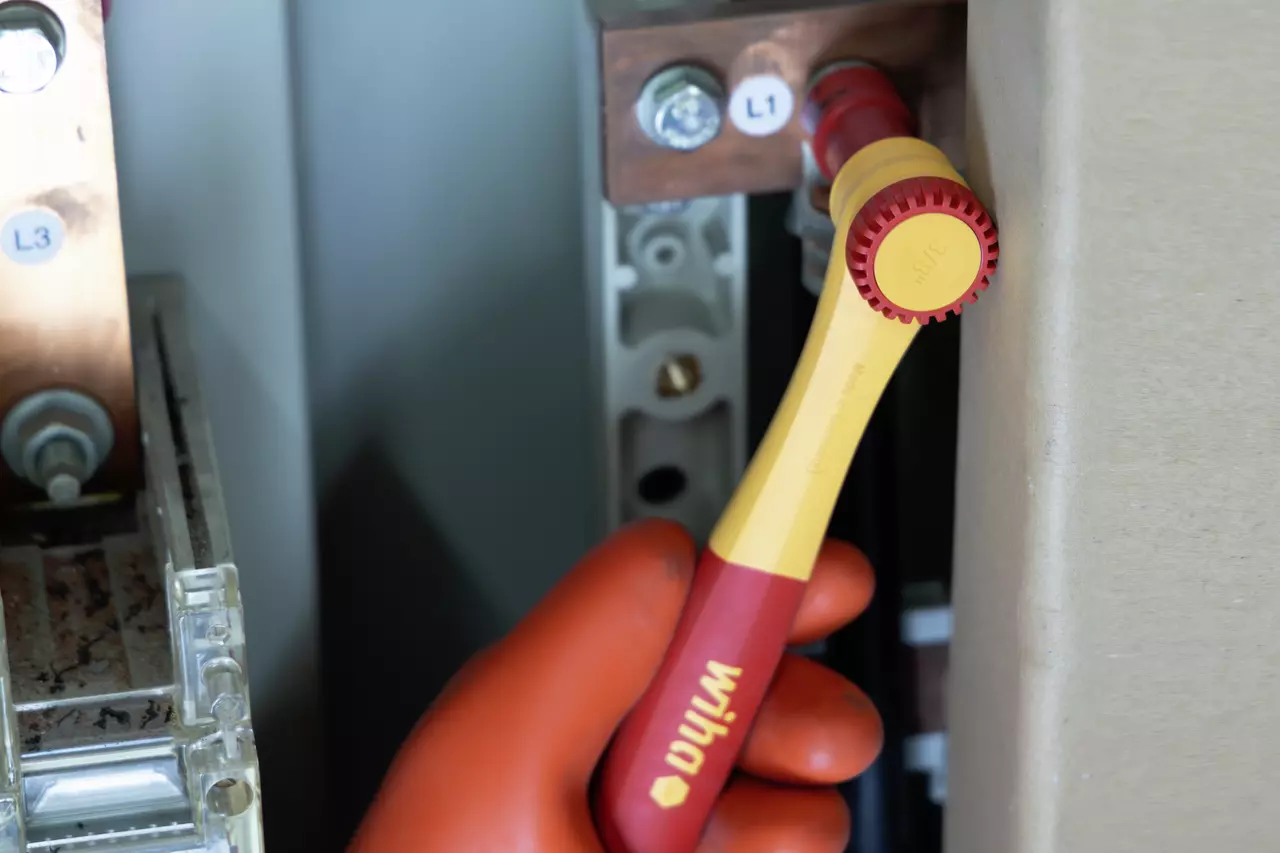

Especially in the electrical trade, it is not only strength that counts but also a careful touch – and above all safety. The insulated 1/2" reversible ratchet set from Wiha addresses precisely these requirements. The integrated rotary knob of the reversible ratchet ensures fast and secure screwing during the first few turns. The rotational motion can be carried out precisely with one's fingers while maintaining a safe distance from the live environment. The non-slip, ergonomic handle ensures comfortable working when applying the final powerful strokes to tighten the screw. The finely serrated ratchet mechanism has a small return angle, allowing work to be carried out even in confined spaces. The nut drivers, which are securely locked in place by a detent retaining ball, can be easily released and changed with a push button. The reversible right and left rotation as well as the enclosed extensions for reaching low-lying nuts and screws provides additional flexibility for work. The reversible ratchet is VDE-certified and undergoes routine testing in accordance with the international standard IEC 60900. It allows safe working in the vicinity of live parts up to 1,000 V AC.

Product dimensions

392 x 335 x 96 mm (LxWxD)

Standards

VDE-certified and tested in accordance with IEC 60900.

Conformity

Wiha Werkzeuge GmbH is certified according to ISO 9001:2015, ISO 14001:2015 and ISO 50001:2018 and confirms that its products comply with internal regulations, operating instructions as well as applicable norms, standards and legal requirements and are subject to continuous process monitoring. The product complies with the requirements of Regulation (EU) 2017/821 on conflict minerals as well as the OECD Due Diligence Guidance, the General Product Safety Regulation (GPSR), Regulation (EC) No 1907/2008 (REACH), whereby the latest SVHC Candidate List is regularly reviewed and requirements are implemented, Directive 2011/65/EU (RoHS) including amendment (EU) 2015/863 as well as Regulation (EU) 2019/1021 on persistent organic pollutants (POP).

Application

Safe installation of terminals and sleeves, conductor connections and fastening of conductor lines. For working on live parts up to 1,000 V AC.

Set constituent

Content:1x T-handle insulated for nut driver (43063)1x Electric reversible ratchet 1/2" with push button and detent retaining ball 250 mm (43053)1x Insulated extension 1/2" for nut driver inserts, insulated 125 mm (43055)1x Insulated extension 1/2" for nut driver inserts, insulated 250 mm (43056)1x Insulated nut driver insert 1/2" hexagon head 10.0 mm x 55 mm (43077)1x Insulated nut driver insert 1/2" hexagon head 11.0 mm x 55 mm (43078)1x Insulated nut driver insert 1/2" hexagon head 12.0 mm x 55 mm (43079)1x Insulated nut driver insert 1/2" hexagon head 13.0 mm x 55 mm (43080)1x Insulated nut driver insert 1/2" hexagon head 14.0 mm x 55 mm (43081)1x Insulated nut driver insert 1/2" hexagon head 17.0 mm x 55 mm (43082)1x Insulated nut driver insert 1/2" hexagon head 19.0 mm x 55 mm (43083)1x Insulated nut driver insert 1/2" hexagon head 22.0 mm x 55 mm (43084)1x Insulated nut driver insert 1/2" hexagon head 24.0 mm x 55 mm (43085)1x Insulated nut driver insert 1/2" hexagon head 27.0 mm x 55 mm (43086)1x Insulated nut driver insert 1/2" hexagon head 32.0 mm x 55 mm (43087)1x Insulated nut driver insert 1/2" hexagon head 4.0 mm x 120 mm (43100)1x Insulated nut driver insert 1/2" hexagon head 5.0 mm x 120 mm (43101)1x Insulated nut driver insert 1/2" hexagon head 6.0 mm x 120 mm (43102)1x Insulated nut driver insert 1/2" hexagon head 8.0 mm x 120 mm (43103)1x Insulated nut driver insert 1/2" hexagon head 10.0 mm x 120 mm (43104)1x Case empty
