Industrial diagonal cutters with DynamicJoint®

The all-rounder for cutting to length.

Export PDF

Add to bookmarks

Remove from bookmarks

Order number	EAN						Netto
43324	4010995433246	1.6 mm	140 mm	5 1/2"	16	178	€
43333	4010995433338	2 mm	160 mm	6 1/2"	17	234	€
43338	4010995433383	2.3 mm	180 mm	7"	18	276	€
43451	4010995434519	1.6 mm	140 mm	5 1/2"	16	201	€
43456	4010995434564	2 mm	160 mm	6 1/2"	17	257	€
43461	4010995434618	2.3 mm	180 mm	7"	18	302	€

Diameter max (mm)

Overall length (mm)

Overall length (Inch)

Cutting force

Weight PU in grams

Series Z 12 1 02

Size specifications are always given in mm

Highlights

Precise and clean cutting of soft and hard wire

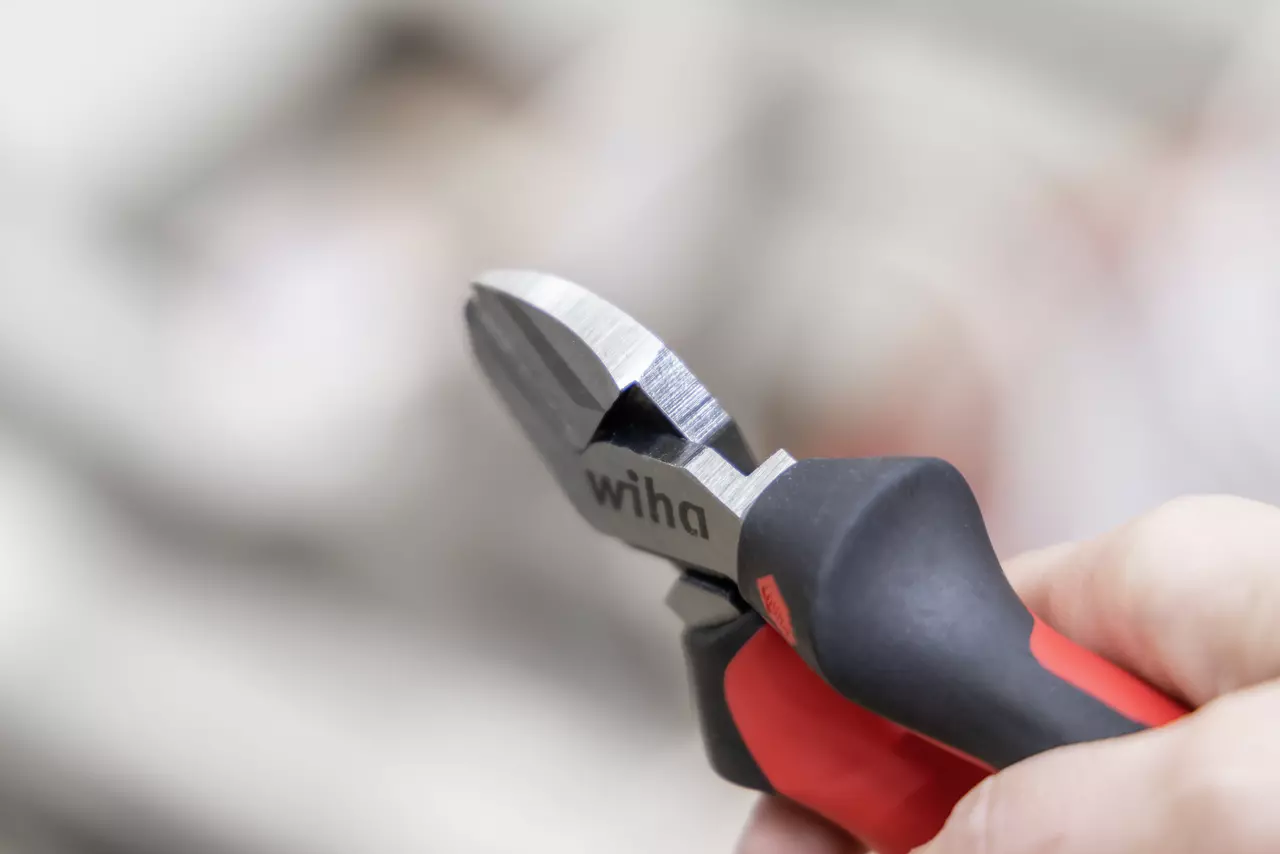

DynamicJoint® - Innovative unique joint design

Kind to hands and muscles

Product Description

Product description

A tradesman's tool kit would be incomplete without a universal cutter to cut hard and soft wires. The diagonal cutters Industrial by Wiha prove themselves to be robust, all-rounder pliers. The plier joint with DynamicJoint® ensures hand force is optimally applied when cutting, providing up to 40% greater cutting force. With their semi-circular head, these precision pliers also provide a clean cut edge. The ergonomically shaped plier handle ensures comfortable, fatigue-proof work. The cutting edges that are inductively hardened to approx. 64 HRC and the high-quality C 70 tool steel contribute to a long tool life.

Product dimensions

250 x 100 x 32 mm (LxWxD)

Standards

DIN ISO 5749.

Note

To benefit from this product for as long as possible, we recommend regularly applying a drop of oil after use.

Standard text

Wiha Werkzeuge GmbH is certified according to ISO 9001:2015, ISO 14001:2015 and ISO 50001:2018 and confirms that its products comply with internal regulations, operating instructions as well as applicable norms, standards and legal requirements and are subject to continuous process monitoring. The product complies with the requirements of Regulation (EU) 2017/821 on conflict minerals as well as the OECD Due Diligence Guidance, the General Product Safety Regulation (GPSR), Regulation (EC) No 1907/2008 (REACH), whereby the latest SVHC Candidate List is regularly reviewed and requirements are implemented, Directive 2011/65/EU (RoHS) including amendment (EU) 2015/863 as well as Regulation (EU) 2019/1021 on persistent organic pollutants (POP).

Application

For cutting cables and soft and hard wires.
