Nut driver insert gripper

Takes care of everything.

3/8" in SB-cardboard packaging

Export PDF

Add to bookmarks

Remove from bookmarks

Order number	EAN							Netto
09400	4010995094003	3/8"	7 - 19	25.4 mm	53.5 mm	No	136	€
20554	4010995205546	3/8"	7 - 19	25.4 mm	53.5 mm	Yes	145	€

Outside square (inch)

Hexagon head min - max (mm)

Round blade diameter (mm)

Overall length (mm)

Self service - packing

Weight PU in grams

Series 24601

Size specifications are always given in mm

Highlights

For all screws with external sizes up to 19 mm

Replaces 7–19 mm nut driver set

Product Description

Product description

You won't get far with a standard nut driver insert when fastening or undoing uncommon screw types such as eye bolts. Wiha presents the optimum solution with its multi-functional nut driver insert gripper. Thanks to its 54 spring-loaded steel pins, the gripper adjusts to any nut with an external profile or any screw up to 8 mm high. Even uncommon profiles such as hooks or eye bolts do not present a problem for the gripper. It replaces nuts between 7 and 19 mm, regardless of whether dimensions are metric or imperial. Torques up to 80 Nm can also be applied. The nut driver insert fits on 3/8" square tool holders. Thanks to its compact size, the universal gripper provides a space- and weight-saving alternative to a nut driver insert, ideal for carrying around.

Product dimensions

130 x 72 x 28 mm (LxWxD)

Material

Housing made from alloyed steel. 54 spring-loaded hardened steel pins.

Extra

Enables a torque transmission of up to 80 Nm.

Standard text

Wiha Werkzeuge GmbH is certified according to ISO 9001:2015, ISO 14001:2015 and ISO 50001:2018 and confirms that its products comply with internal regulations, operating instructions as well as applicable norms, standards and legal requirements and are subject to continuous process monitoring. The product complies with the requirements of Regulation (EU) 2017/821 on conflict minerals as well as the OECD Due Diligence Guidance, the General Product Safety Regulation (GPSR), Regulation (EC) No 1907/2008 (REACH), whereby the latest SVHC Candidate List is regularly reviewed and requirements are implemented, Directive 2011/65/EU (RoHS) including amendment (EU) 2015/863 as well as Regulation (EU) 2019/1021 on persistent organic pollutants (POP).

Application

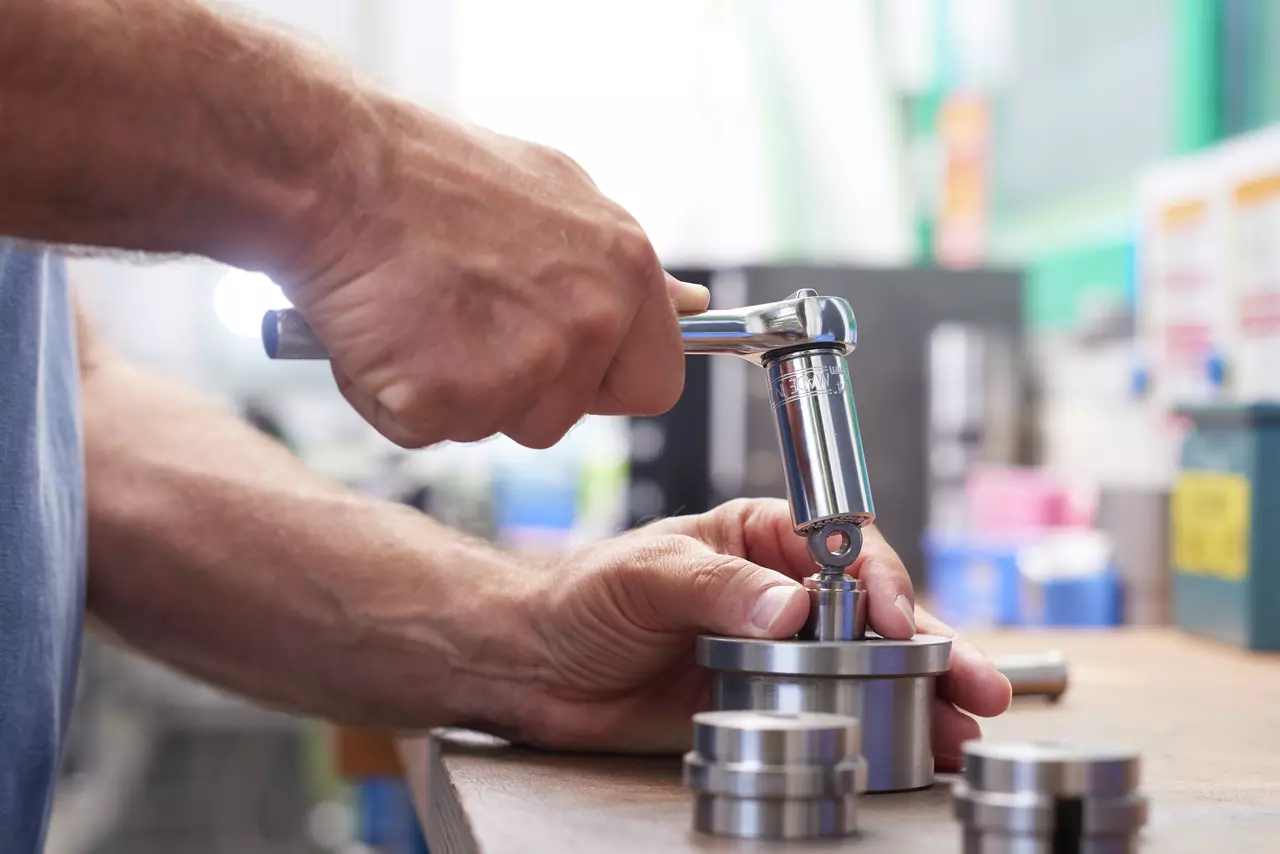

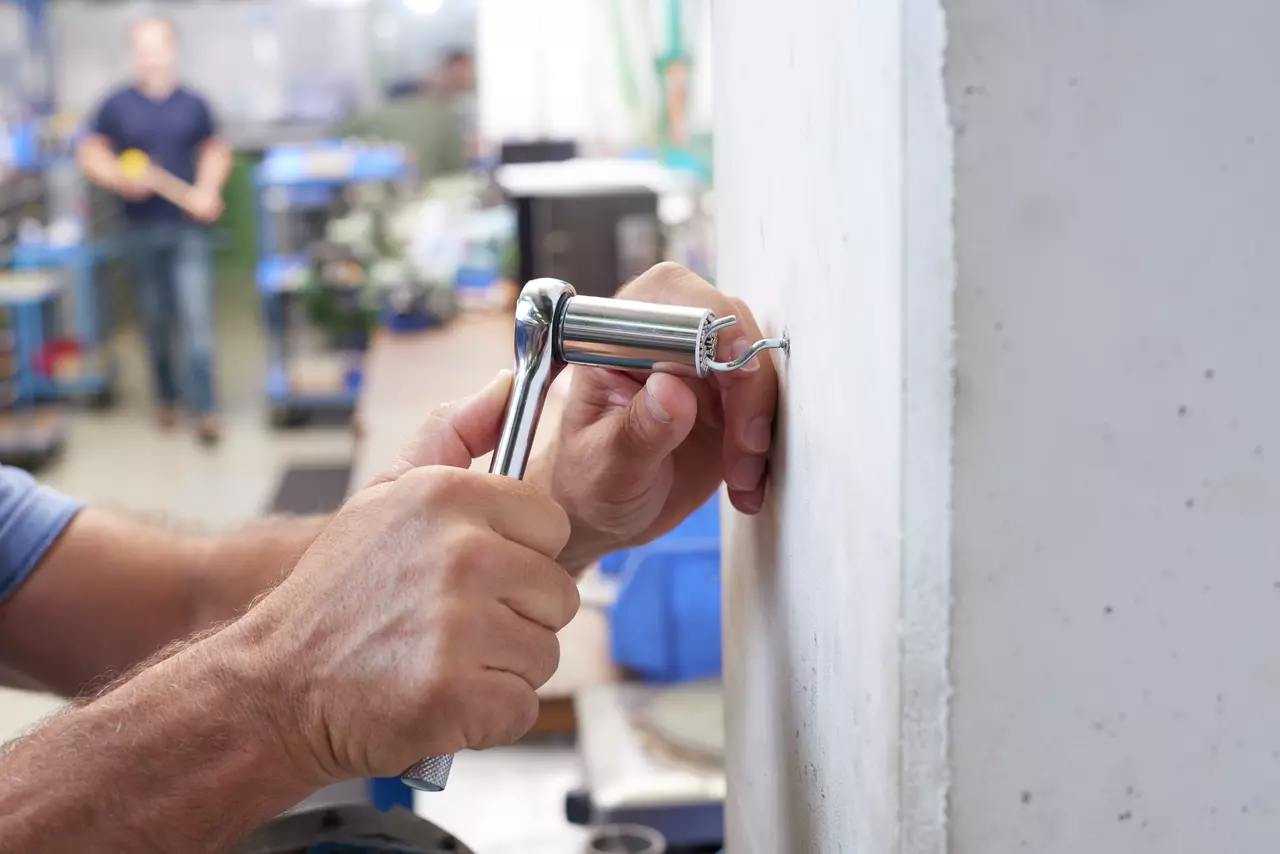

The alternative to a nut driver insert when out on jobs. Ideal for fastening uncommon screw types such as hooks or eye bolts.

Drive

DIN 3120, style C 10.
