Water pump pliers QuickFix Classic

Rapid setting directly on the work piece.

automatic

Export PDF

Add to bookmarks

Remove from bookmarks

Order number	EAN							Netto
39091	4010995390914	250 mm	10"	1 1/2"	40 mm	-	340	€
39094	4010995390945	250 mm	10"	1 1/2"	40 mm	x	375	€
46614	4010995466145	180 mm	7"	1"	30 mm	x	185	€

Overall length (mm)

Overall length (Inch)

Pipe diameter (inches)

Spanner size (mm)

Blister packed

Weight PU in grams

Series Z 23 0 01

Size specifications are always given in mm

Highlights

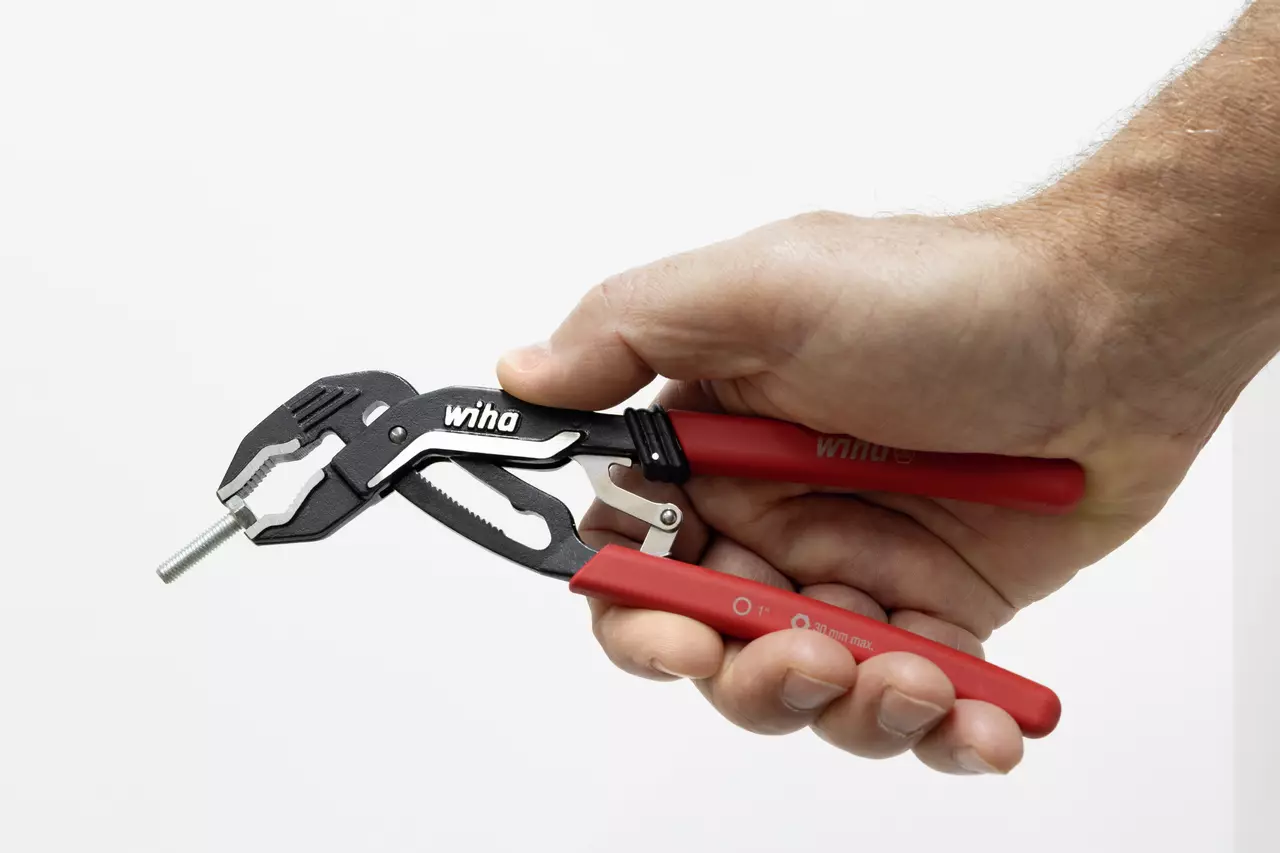

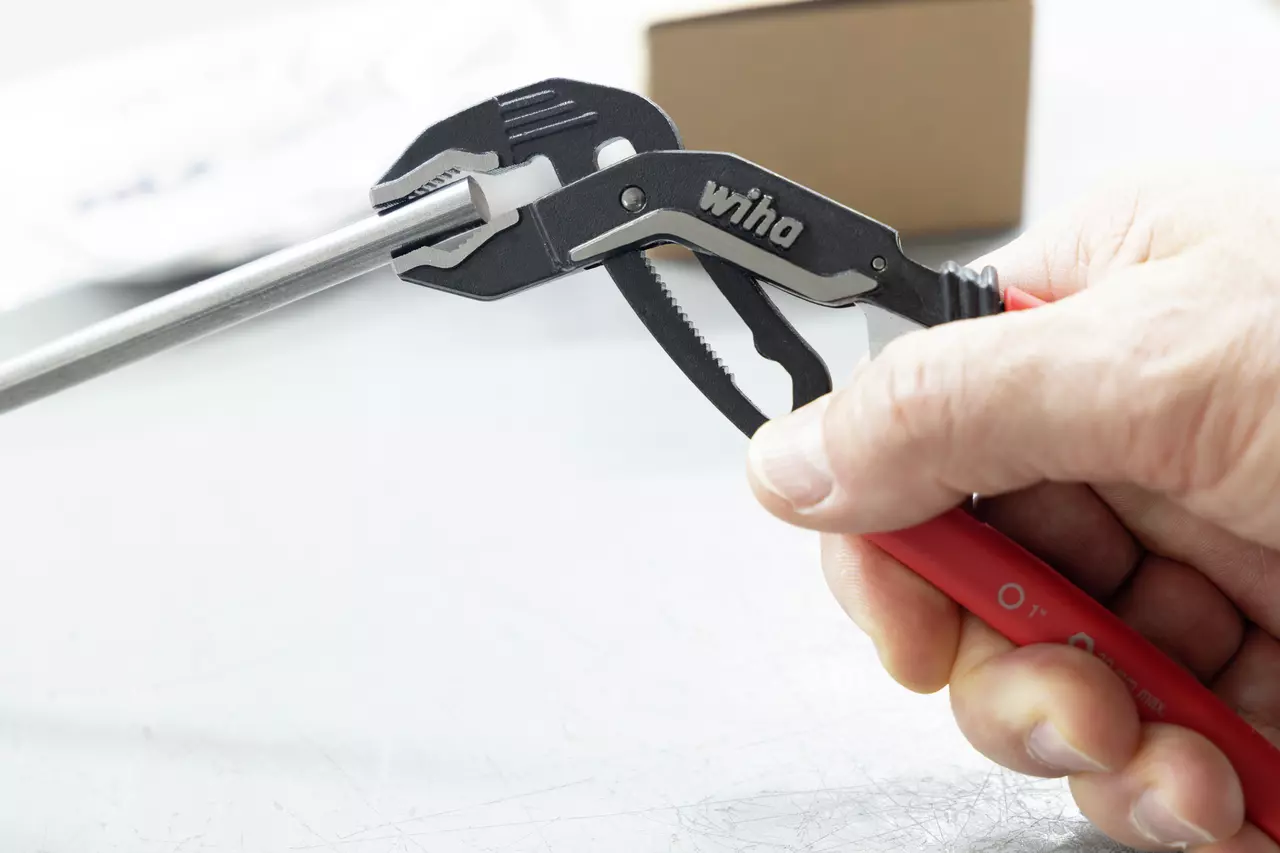

Turning, pulling, gripping and holding of e.g. pipes or tightening screws and nuts

Fast automatic adjustment of the gripping width to the workpiece

Maximum variability thanks to finely serrated sliding joint

Highest stability thanks to a box type joint

Product Description

Product description

Installation projects often involve pipes, nuts, as well as rounded and edged materials in a variety of dimensions. Water pump pliers offer the optimal grip for all occasions. With detent adjustment, it offers maximum variability in the installation area, where the precise mechanical setting takes place automatically while gripping the work piece. Crushing injuries are prevented thanks to the integrated clamping protection. Double guidance based on a box joint ensures the greatest stability of the pliers. At the same time, the slim design in the head and joint area provides reliable access to the work piece, even in confined areas. The handles of the pliers are made of anti-slip plastic and offer users a strong grip, even in oily or wet work situations. In addition, slipping off the work piece is prevented by the self-clamping on pipes and nuts, thus enabling highly comfortable work. When in use, the high-quality specially hardened teeth guarantee a reliable secure grip with long-term durability. The robust water pump pliers are dirt resistant.

Standards

DIN ISO 8976.

Standard text

Wiha Werkzeuge GmbH is certified according to ISO 9001:2015, ISO 14001:2015 and ISO 50001:2018 and confirms that its products comply with internal regulations, operating instructions as well as applicable norms, standards and legal requirements and are subject to continuous process monitoring. The product complies with the requirements of Regulation (EU) 2017/821 on conflict minerals as well as the OECD Due Diligence Guidance, the General Product Safety Regulation (GPSR), Regulation (EC) No 1907/2008 (REACH), whereby the latest SVHC Candidate List is regularly reviewed and requirements are implemented, Directive 2011/65/EU (RoHS) including amendment (EU) 2015/863 as well as Regulation (EU) 2019/1021 on persistent organic pollutants (POP).

Application

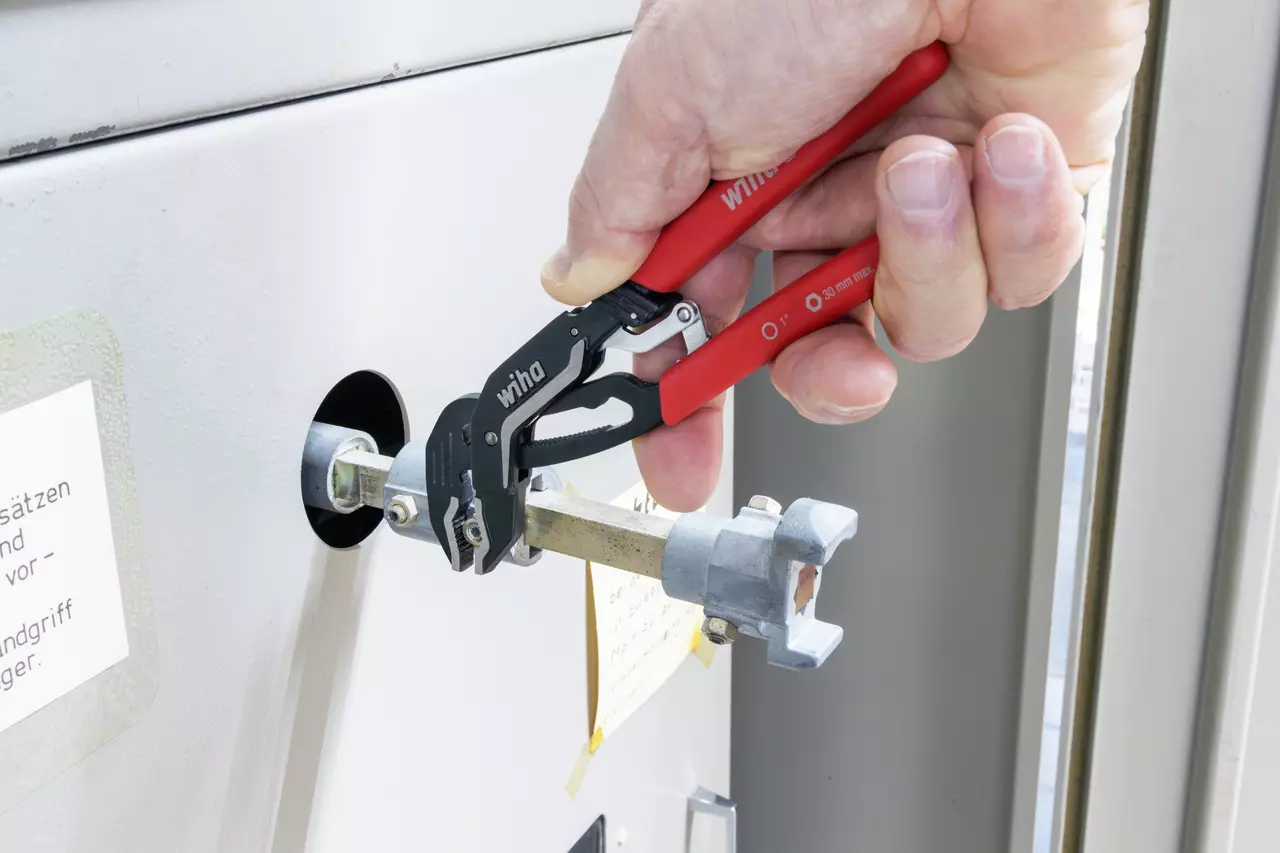

For quick and optimal gripping and holding pipes and angular profiles such as hexagon nuts in installations.
